upgrade abaqus 直列実行スクリプト
動作確認済み.テスト完了.V11を利用してください.
更新点
✅ 時々
.log
ファイルが正しくフォルダ内に移動できないBUGを修正した. (.log
が読み込み中のため,移動できない) #3✅
Thread=1
にしても,複数.inp
ファイルを置いたとき,列を並べず,同時に二つ.inp
流す BUGを修正した.#4✅ 判定時間及び条件を修正して,流れを最適化した.
✅ #5 2個
inp
を列に並ぶ時,近似度高い.inp
はFinished
フォルダに一緒に移動させる.(例えば,job.inp
が終了時,_queued_job-1.inp
,_queued_job-2.inp
も一緒に移動される) ☑️ Fixed it show in 6666908
Update Log 2022.06.22
- #3 After run
queueLoop
, I change the sleep time 500ms to 3000ms, that for Waiting for the.log
to finish reading and writing status. - I delated the For loop with 54 to 63 row and change the sleep time to 2000ms after
finishLoop
command. - #4 Add the sleep time in the
finished
loop to wait the.log
file write to end. (Sleep time is set to 1000ms) - When check the file that who is in runing, I change
.lck
to.log
, to prevent .lck from appearing too slow, cause abaqus calculate 2 inp at the same time. - #5 When the first name you run siminar the name of
queue
job, such asjob.inp
and_queued_job-1.inp
. When the job was finished, it will put the_queued_job-1.inp
into the Finished folder togther. ☑️ Fixed this issue by add the judgment that do not move the name that stared_queued_
show in 6666908
Where you can download the version 11
You can Download from the link in the table, Or the bottom of this text. I also put it in the BRNAS : You can find it at 📁 \\NAS_sy21\common\便利グッズ\02.解析\直列実行スクリプト
License | V11 | |
---|---|---|
76 | CPU: 4 Coreを使って計算する | Download |
120 | CPU: 8 Core + GPU:1 を使って計算する | Download |
or There have attachment file below this documentation

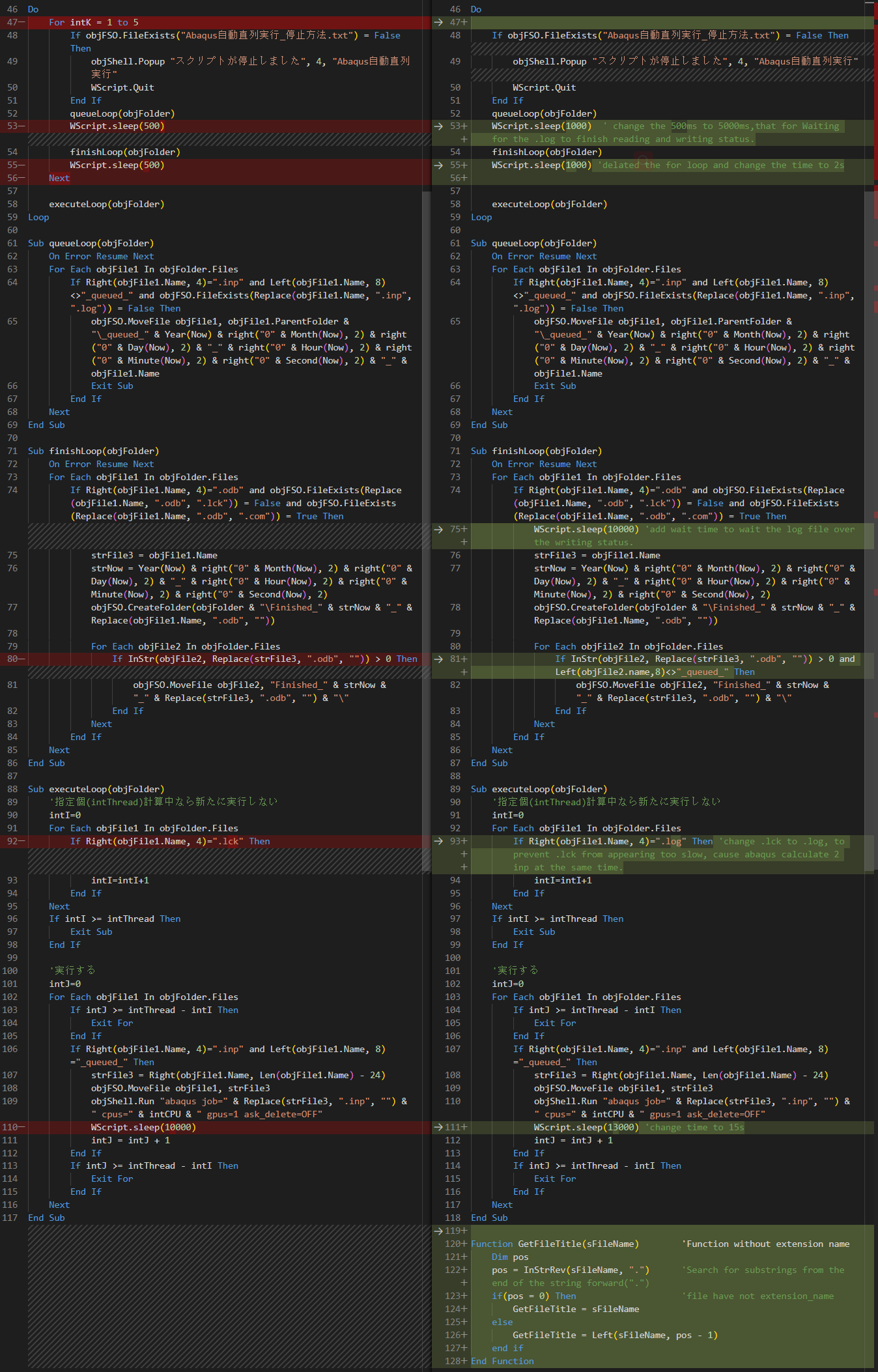

Where was changed
For example run50_v10.vbs
to v11
Full Change log : https://github.com/ChenYu-K/Data-Processing/tree/main/script/abaqus_run
Bug tester
Thanks for QH.Shen @bridgelab-omu , R.Sakura and JP.Rai @toronion5515 , K.Obaishito test the script, and find the bug.
Creat License
Creat License by #1 , @ChenYu-K Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0
